Agapay
Robotic Exoskeletons for Upper Limb Rehabilitation
The current design is a 12 degree-of freedom (DOF) system that accounts for shoulder, elbow, wrist, and finger movements. An effective design requires the device to be comfortable, user-friendly, safe to use, and manufactured at a low cost. The device is actuated using high power servo motors attached to an adjustable frame. Real-time biofeedback system is integrated to record neuromuscular activity using surface electromyography (sEMG). The robotic exoskeleton arm can perform active and passive motion exercises through gamification techniques using integrated haptics and a graphical interface.
Publications
- At least one (1) publication on conference or high impact journals
Products
- Reproduce three (3) replicates of the final design prototype and demonstrate the safety, feasibility, and effectiveness
- Establish and develop protocols for the upper limb robotic exoskeleton safety testing while taking into consideration existing international standards for its therapy program and individual functions/exercises
Patents
- Three (3) patents approved and one (1) international patent
People Services
- Produce a technical manual and user guide for potential users
Places and Partnerships
- Signed CRA between DLSU-IBEHT and UP Manila - PGH

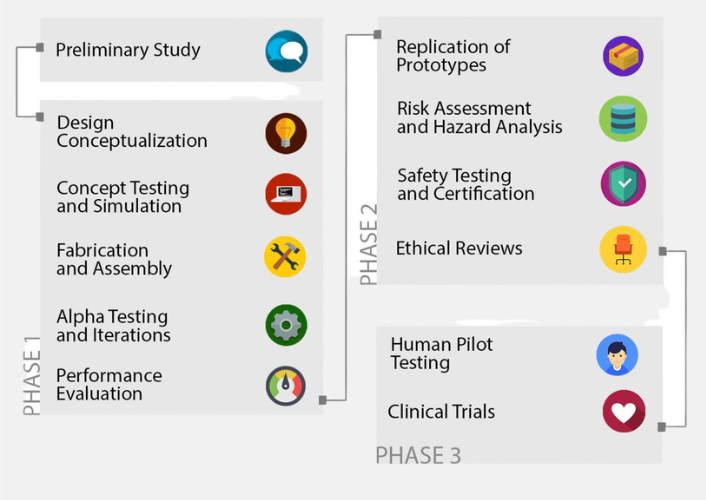

Methodology

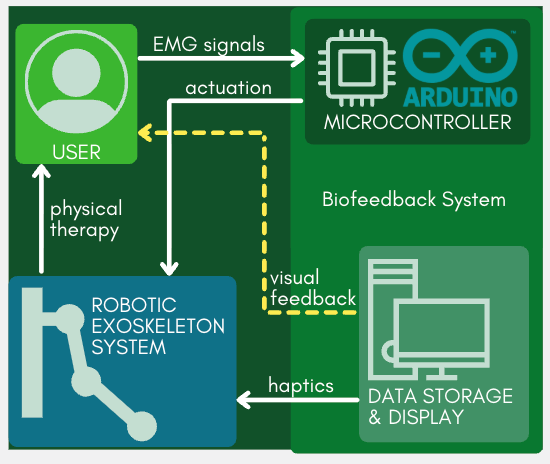

Conceptual Framework
Project Documentation

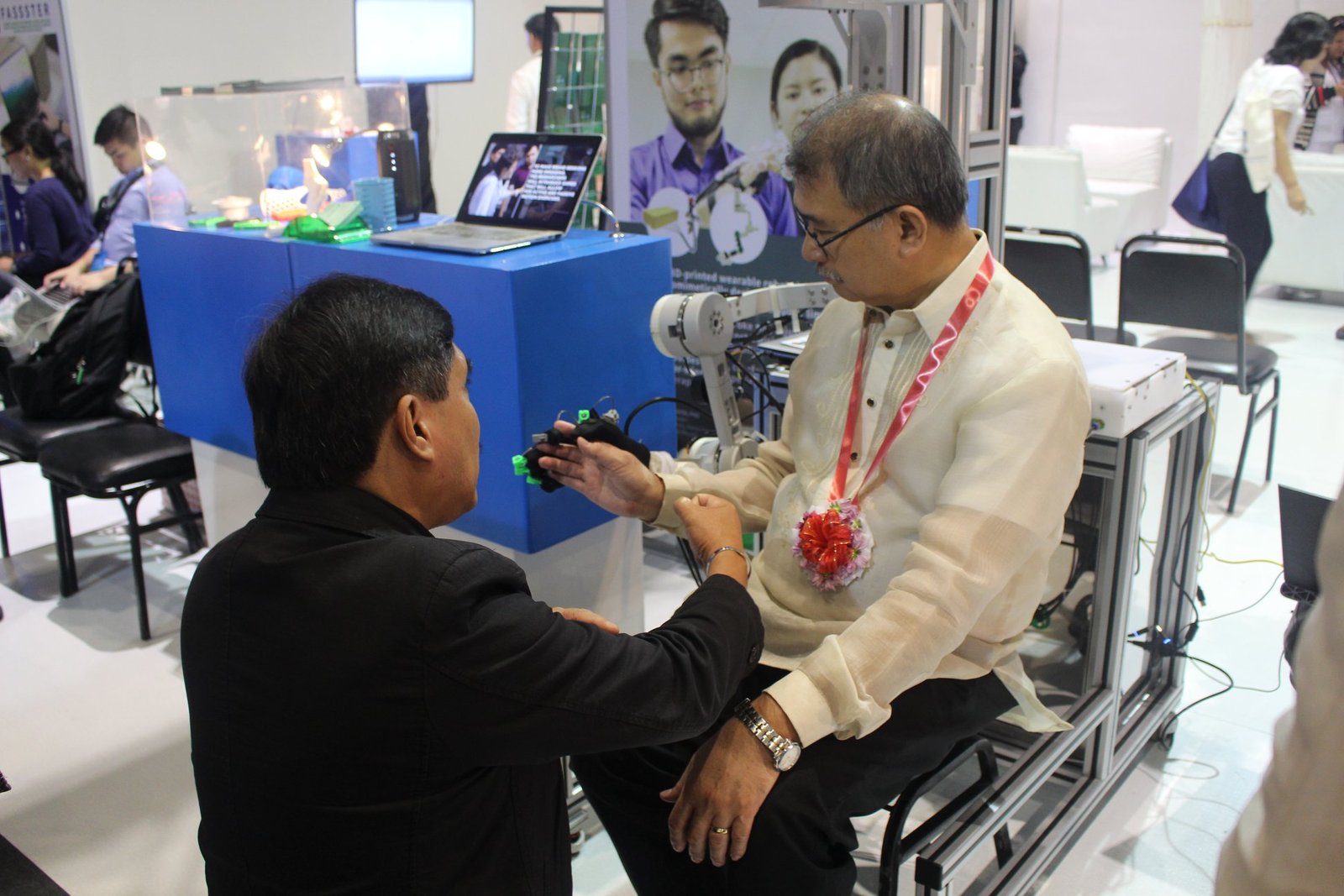

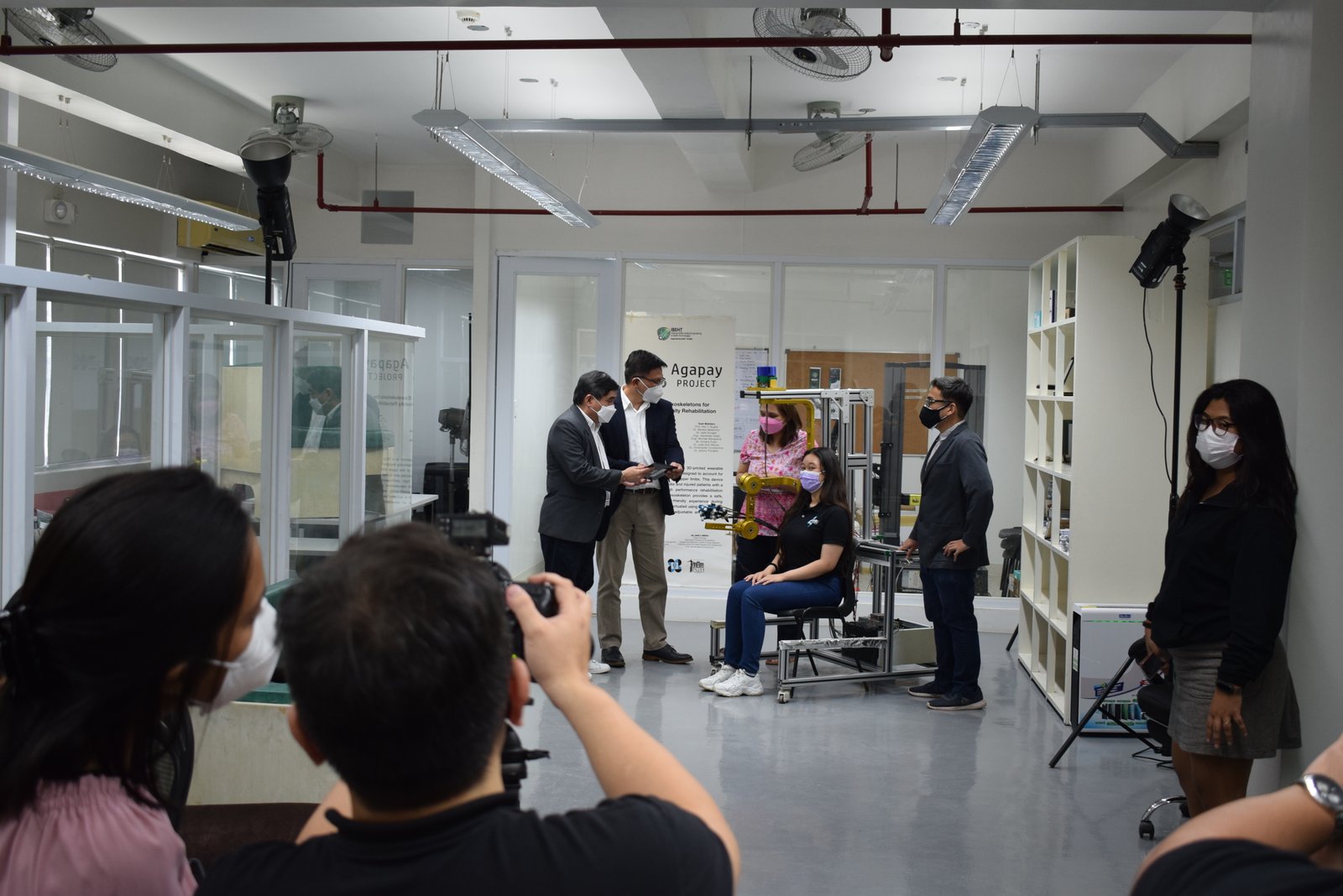

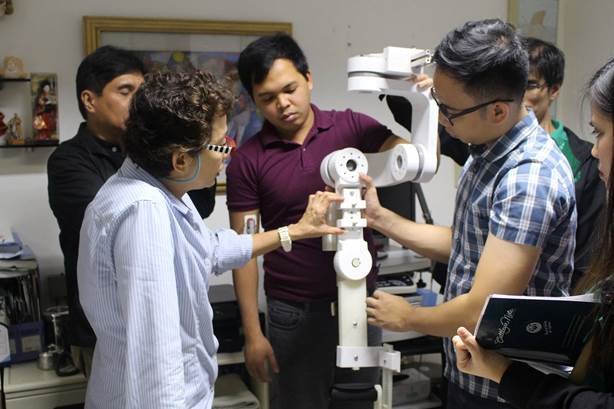

Photos and videos from the project.
StatusPre-Commercialization
Research CenterMedical Robotics
Patents3 patents approved and 1 international patent
Project Team
Prof. Nilo Bugtai, PhDDirector, IBEHTFull Professor, DMEM
Renann Baldovino, PhDAGAPAY Project LeaderAssoc. Prof. DMEM
- Jade Dungao, PhDResearch Faculty · Assoc. Prof. Physics
- Alexander Abad, MScResearch Faculty · Asst. Prof. DECE
- Michael Manguerra, MScResearch Faculty · Asst. Prof. DMEM
- Voltaire Dupo, MScLead Researcher, Stage 3 · Lecturer, DECE
- Aira Patrice Ong, MScLead Researcher, Phase 2
- Paul Dominic Baniqued, MScLead Researcher, Phase 1
- Jose Alvin Mojica, MDMedical Collaborator · UPM-PGH
- Christopher Constantino, MDMedical Collaborator · UPM-PGH
- Jeremy Flordelis, MDMedical Collaborator · UPM-PGH
- Atty. Christopher Cruz, PhDIP Account Manager · DIPO/DITO
- Lorraine Faeldon, MDMedical Officer · IBEHT
- Peter Tenido, MScTechnology Transfer Officer · DITO
- Winny ParedesResearch Associate · Stage 3
- Nikka TeniegraProject Secretary · Phase 1 & 2
- Arlyn RascanoProject Secretary
- Miguel DunganProgrammer
- Francis BelistaResearch Assistant
- Vernicka De SagunResearch Assistant
- Engr. Annysa PerezResearch Assistant
- Engr. Carlos CasesResearch Assistant
- Engr. Eldrich ValencerinaResearch Assistant
- Engr. Hanz TimbreResearch Assistant
